Youcan 10.5/11/11.5m Stake Semi-trailer
Stake Trailer is also called Fence Trailer or Sidewall trailer. It is a flatbed trailer with stake or sidewall. Stake Trailer is always the right vehicle for all your general cargo transport work.The Yuchang Stake Trailer provides the right trailer for majority of road tasks.
Description
Specification
Reviews(0)

    Overview of Youcan Stake Semi-trailer

    Stake Trailer is also called Fence Trailer or Sidewall trailer. It is a flatbed trailer with stake or sidewall. Stake Trailer is always the right vehicle for all your general cargo transport work.The Yuchang Stake Trailer provides the right trailer for majority of road tasks.

    Features of Youcan Stake Semi-trailer

    1.CAE and Hype

    2.rmesh software were used for multiple finite element analysis and verification to optimize the structure of the vehicle and its components.

    3.The Youcan Stake Semi-trailer stands out as being particularly lightweight with higher payload or lower fuel consumption.

    4.The Youcan Stake Semi-trailer is automatically welded by an advanced large-scale special welding machine. Ensure the safety of the trailer and increase the service life.

    5.The metal surfaces of the vehicle after the welding process is cleaned with sand shot blasting process with grit metal.In order to protect the surfaces from rusting on the top of the surfaces with 2 coats of epoxy primer and acrylic finished paint will be on customer demand. The total thickness of the paint work is 120micron.

    6.Increased load bearing capacity:10% more distributed load.

    Stake Semi-trailer Supplier

    The Youcan Trailer was founded in 1999, with rich experiences of producing semi-trailers and providing complete trailer solutions for different applications.

    The company specialized in providing aluminum tankers, fuel tankers, bulk cement tankers, dumper trailers,tipper trailers, stake/sidewall trailers, flatbed trailers, low-bed trailers, container carrier trailers, cargo trailers, and other hundreds of products with 23 Years of experiences.

    Feel free to contact us for latest price of new semi-trailers. Competitive price with reliable quality waiting for you!


    Stake Semi-trailer

    12

    Name

    Youcan Stake Semi-trailer

    Model

    YCH9406CCY

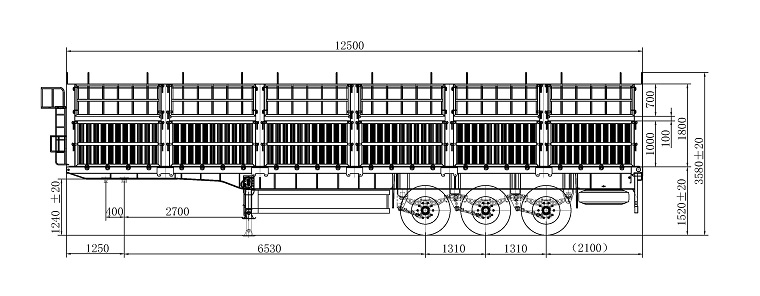

    Overall dimension

    10.5/11/11.5m *2.55m* 3.55m/3.95m

    Loading capacity

    30-80Tons

    Stake Type

    See pictures above

    Hundreds of types available

    Floor plate thickness(mm)

    Flat plate 2mm OR

    Antiskid design 1.5mm-3mm

    Main beam

    middle plate is 6/8/10mm.   Q700

    Axle brand and number

    10T/12T/13T/ BPW/FUWA, 2/3/4 Axles

    Kingpin

    50# or 90#

    Steel Spring

    4*22*90mm 10*13*90mm  10*16*90mm

    Suspension system

     Air /Mechanical suspension

    Tyre

    11R22.5 / 11.00R20,12R22.5 / 12.00R20, 315/80R22.5

    Landing gear

    28T, double speed operation

    ABS Brake System



    Kormee/WABCO brand, 2S2M

    Braking system

    Drum brake

    Brake air chamber

    Four double  chamber Two single

    Electrical system

    24V,7 pin socket,One set 6-core standard Cable

    Light



    All Led.

    Tail lamp with turn signal, brake light & reflector,

    Tool box

    1-2 set

    Spare tire carrier

    1-2 set

    Painting

    Sand shot blasting process with grit metal. 2 coats of epoxy primer and acrylic finished paint will on customer demand. The total thickness of the paint work is 120micron.

    Packing

    Polish with wax before shipping
