What is a Curtainsider trailer

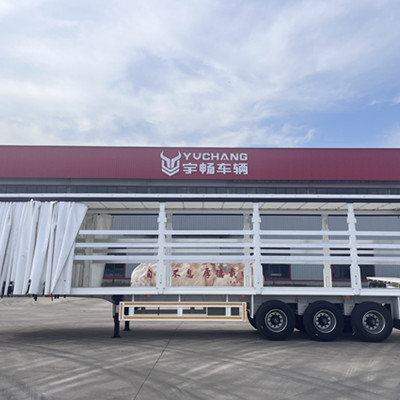

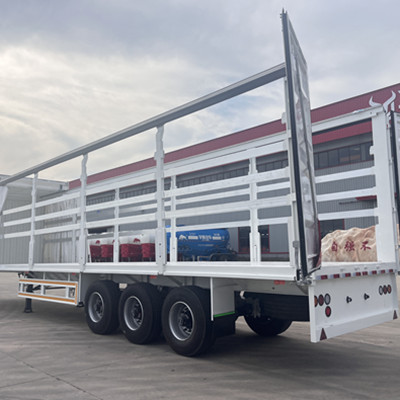

A Curtainsider trailer is a specialized semi-trailer whose rigid frame is mounted on a flatbed or flatbed trailer.

Curtainsider trailers consist of a solidly supported front with entry doors, horizontal roof brackets running the length of the trailer, a metal structural roof (similar to a dry van), two rear doors that swing open and a sliding tarp system (Usually by the manufacturer) Made of 18 oz (or similar) material.

The tarps on the sides of the Curtainsider trailer can be retracted for loading, sliding in a similar fashion to the tarps on Conestoga trailers.

Not to be confused with Conesoga (although they usually are), side trailers are different in many ways. Most notably, the curtains only come with tarps on both sides (left and right). Conestogas has a larger curtain system that also forms the roof and rear.

Also, the frame of a Curtainsider trailer is much stronger than that of a Conestogas. Curtainsider trailers have fixed and non-retractable roofs - not so with Conestogas.

How are Curtainsider trailers typically used?

Curtain side trailers can be used for any cargo that needs to be protected from the elements during transport - as long as it can be loaded from the side or rear.

Products suitable for this model include, but are not limited to, many palletized commodities, raw materials (e.g. wood, steel), and moisture-sensitive machinery.

Additionally, because these trailers offer such robust protection, traditional dry van merchandise such as food and beverage freight, general retail merchandise, and hospitality items (to name a few) are also hauled in them.

What are the pros and cons of using a Curtainsider trailer?

Like any other trailer type, curtainside trailers have a unique set of advantages and disadvantages that users should be aware of. Curtains have the following advantages and disadvantages compared to their closest alternative, the Conestoga Trailer:

Advantages of using a curtain side trailer over a Conestoga trailer:

Better protection from the elements thanks to its tight seams and hard top.

Aluminum roofing for durability.

Disadvantages of using a curtain side trailer instead of a Conestoga trailer:

Curtains are heavier, which makes it more challenging to transport high-weight, fully loaded trucks.

Due to its rigid frame, curtain side trailers can only be loaded from the side or from the rear with a forklift. Cannot be loaded with an overhead crane.
